MaterialRigid PVC.

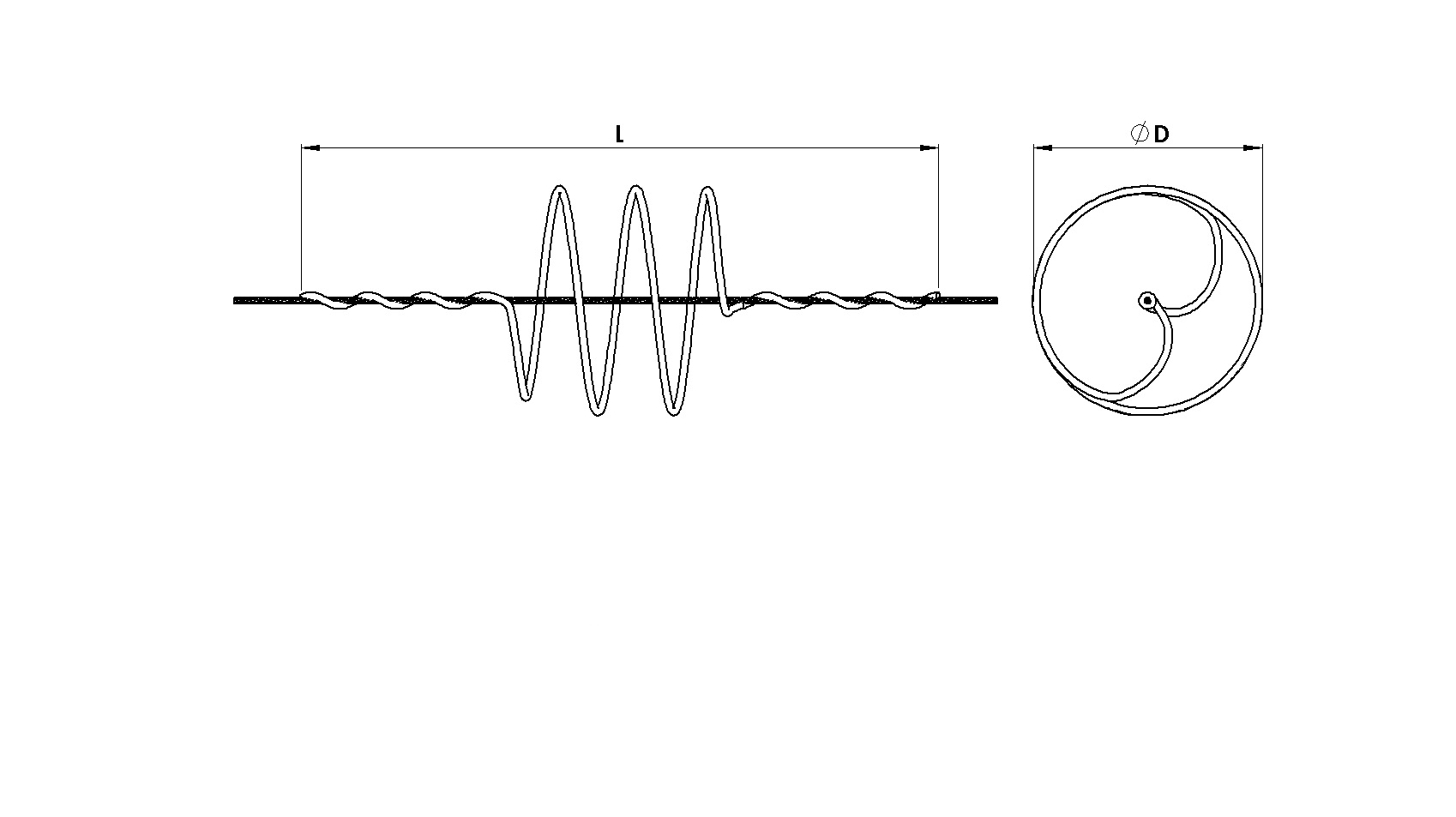

ReferenceØ Conductor Min.Ø Conductor Max.Ø Rod (inch)Dimensions (inch) LDimensions (inch) DColourSlifing load (lb)Weight (lb)
Reference : DAA‐7/9,50/AMØ Conductor Min. : 0.28Ø Conductor Max. : 0.37Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : 39.37Dimensions (inch) D : 13.78Colour : YELLOWSlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐7/9,50/AMØ Conductor Min. : 0.28Ø Conductor Max. : 0.37Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : (31.50 when idle)Dimensions (inch) D : 13.78Colour : ORANGESlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐9,51/13,40/AMØ Conductor Min. : 0.37Ø Conductor Max. : 0.53Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : 39.37Dimensions (inch) D : 13.78Colour : YELLOWSlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐9,51/13,40/AMØ Conductor Min. : 0.37Ø Conductor Max. : 0.53Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : (31.50 when idle)Dimensions (inch) D : 13.78Colour : ORANGESlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐13,41/17,50/AMØ Conductor Min. : 0.53Ø Conductor Max. : 0.69Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : 39.37Dimensions (inch) D : 13.78Colour : YELLOWSlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐13,41/17,50/AMØ Conductor Min. : 0.53Ø Conductor Max. : 0.69Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : (31.50 when idle)Dimensions (inch) D : 13.78Colour : ORANGESlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐17,51/21,80/AMØ Conductor Min. : 0.69Ø Conductor Max. : 0.86Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : 39.37Dimensions (inch) D : 13.78Colour : YELLOWSlifing load (lb) : 55Weight (lb) : 1.32
Reference : DAA‐17,51/21,80/AMØ Conductor Min. : 0.69Ø Conductor Max. : 0.86Ø Rod (inch) : 0.47±0.01Dimensions (inch) L : (31.50 when idle)Dimensions (inch) D : 13.78Colour : ORANGESlifing load (lb) : 55Weight (lb) : 1.32
NOTE:

Other PVC colours upon request.
