MaterialCasting - Aluminum Alloy

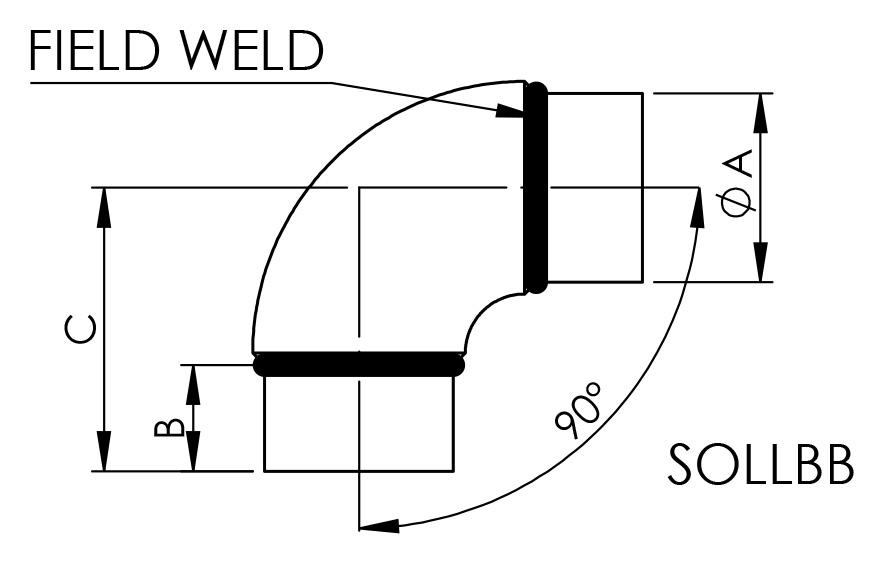

CATALOG NUMBERCONDUCTOR SIZE - A -DIMENSIONS - B -DIMENSIONS - C -
CATALOG NUMBER : SOLLBB-3333CONDUCTOR SIZE - A - : 1DIMENSIONS - B - : 1.50DIMENSIONS - C - : 2.75
CATALOG NUMBER : SOLLBB-4242CONDUCTOR SIZE - A - : 1-1/4DIMENSIONS - B - : 1.31DIMENSIONS - C - : 2.75
CATALOG NUMBER : SOLLBB-4848CONDUCTOR SIZE - A - : 1-1/2DIMENSIONS - B - : 1.63DIMENSIONS - C - : 3.38
CATALOG NUMBER : SOLLBB-6060CONDUCTOR SIZE - A - : 2DIMENSIONS - B - : 2DIMENSIONS - C - : 3.63
CATALOG NUMBER : SOLLBB-7373CONDUCTOR SIZE - A - : 2-1/2DIMENSIONS - B - : 2.50DIMENSIONS - C - : 4.44
CATALOG NUMBER : SOLLBB-8989CONDUCTOR SIZE - A - : 3DIMENSIONS - B - : 2.88DIMENSIONS - C - : 5.63
CATALOG NUMBER : SOLLBB-101101CONDUCTOR SIZE - A - : 3-1/2DIMENSIONS - B - : 2.75DIMENSIONS - C - : 6.13
CATALOG NUMBER : SOLLBB-114114CONDUCTOR SIZE - A - : 4DIMENSIONS - B - : 2.63DIMENSIONS - C - : 6.25
CATALOG NUMBER : SOLLBB-141141CONDUCTOR SIZE - A - : 5DIMENSIONS - B - : 4.75DIMENSIONS - C - : 8.63
CATALOG NUMBER : SOLLBB-168168CONDUCTOR SIZE - A - : 6DIMENSIONS - B - : 5.00DIMENSIONS - C - : 9.63
NOTE:

*Other angles are also available
